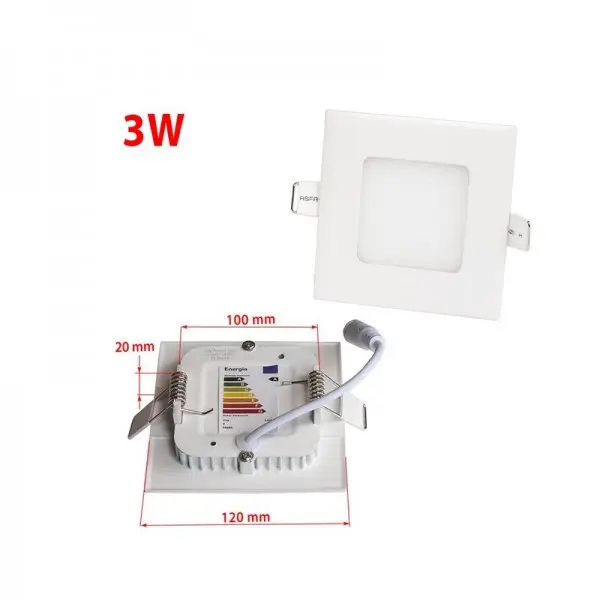

Square Recessed Downlight
For: Office areas, hotels, restaurant, shops, gymnasiums, Internet cafes, etc.
This square ultra slim led panel down-light uses an SMD2835 LED chip. Its main characteristic is its slim, innovative and modern design. It also features a frosted diffuser, which offers a semi-diffused light that is ideal for commercial or domestic use. With a wide 120° opening angle, it’s able to light a large area with high efficiency. Included is a high quality aluminum heat sink to minimize heat emission, making this downlight perfect for areas that need to be lit during long periods of time.
For Any Other Body Colour
any other quequery
you can contact us
PRODUCT SPECIFICATIONS
Housing & Finish
Metal and Aluminum housing in powder coated finish.
Electronic Driver
Powered by an integral isolated low THD electronic LED driver ( SMPS based constant current supply) with output short circuit protection, surge protection
Features & Benefits
• Super slim design with thickness only 10mm for this round led ceiling panel light.
• Light source is Epistar SMD2835 led chip, high brightness and low decay, >85% energy saving than fluorescent light.
• High PF driver, new high efficiency constant current driver. No flickering and no humming, safe and reliable.
• Distinguish circuit design ensures no interference with any LEDs when a single one malfunctions.
• Easy installation: built-in (embedded) to mount on the ceiling.
• 50% light intensity, beam angle>120°, CRI>80Ra, IP20.
• Long Lifespan 50,000hours and extremely low maintenance cost.
Installation Guide
- First of all, cut off the power switch.
- Open a hole on the ceiling as required size.
- Connect power supply and AC circuit for the lamp.
- Stuff the lamp into the hole, finish installation.
